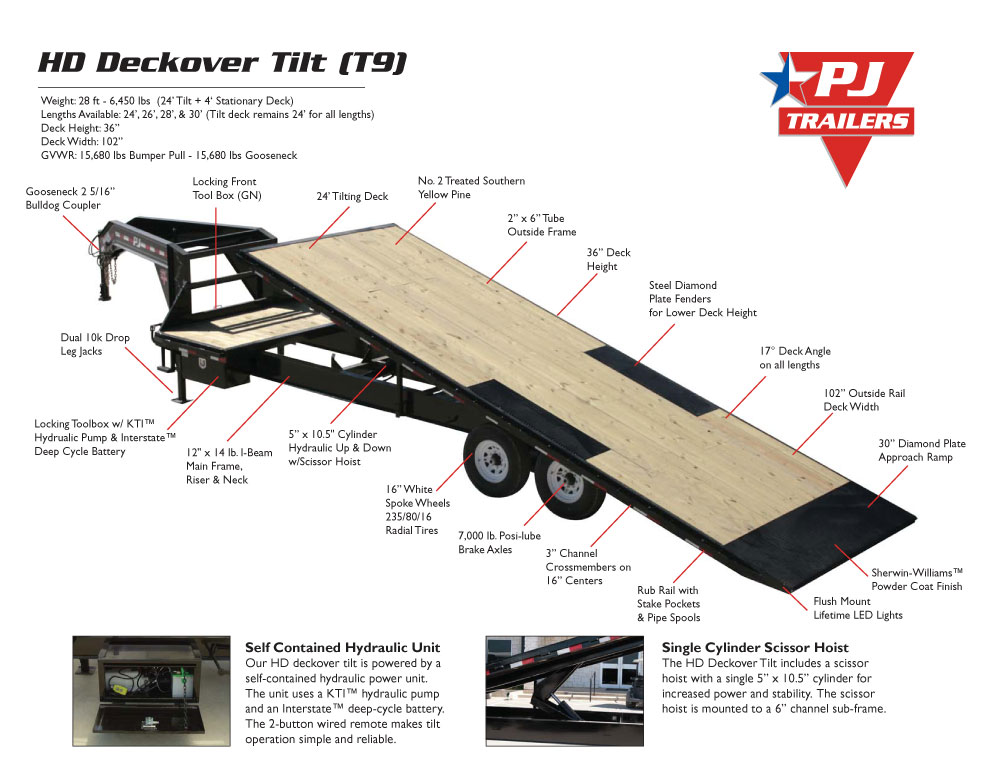

HD Deckover Tilt (T9)
Standard Features
- 15,680 lb. G.V.W.R.
- 7,000 lb. x 2 G.A.W.R.
- GN 2 5/16” Ball Bulldog Coupler 25,000 lb
- Safety Chains
- 2 - Drop Leg Jack (10,000 lb.)
- 2 - Dexter E- Z lube Brake Axles (7,000 lb.)
- 6 Leaf Slipper Spring Suspension
- 4 - 16” White Spoke Wheels
- 4 - 235/80R16 Radial Tires (3,520 lb)
- Rubrail & Stake Pockets
- Electric Breakaway Kit w/ Charger
- DOT Reflective Tape
- Monster Steps on Both Sides
- 24’ Tilt Portion w/ 17 Degree Tilt Pitch
- 3” Channel Crossmembers 16” on Center
- 2 x 6 x 1/8” Square Tubing Outer Deck Frame
- 2” Treated Pine Lumber Deck
- 12” x 14 lb. I-Beam Main Frame, Riser & Neck
- 102” Wide Deck
- 5” x 10.5” West Craft Hyd. Cylinder w/Scissor Lift
- DOT Approved Flushmount Lifetime LED Lights
- Sealed Bargman Wire Harness w/ 7-Way RV Plug
- 12VDC Hydraulic Pump
- 12’ Control Cable
- Sand Blasted, Acid Washed, Powder Coated
- 110V Integrated Trickle Charger
- Interstate (TM) Deep Cycle Battery
- GN Option Equipped with 2 Jacks
- GN Equipped with Front Toolbox
- GN Equipped with Chain Holder
- 5 year Dexter Axle Warranty
